SPECIFICATIONS

Applicable People: Unisex

Battery Capacity: 60V 38.4Ah Lithium Battery

Brake System: Front and Rear XOD Hydraulic Brakes

Brand Name: Halo Knight

Carton Box Size: 135*33.5*54cm

Category: Two-wheel Scooter

Certification: ce,CE, RoHS, FCC

Charging Time: About 6-11 Hours

Climbing Ability: Approximately 50 Degrees

Folded: Yes

Folding Size: 128*28*54cm

Frame Material: Aluminum Alloy

Gross Weight: 56KG

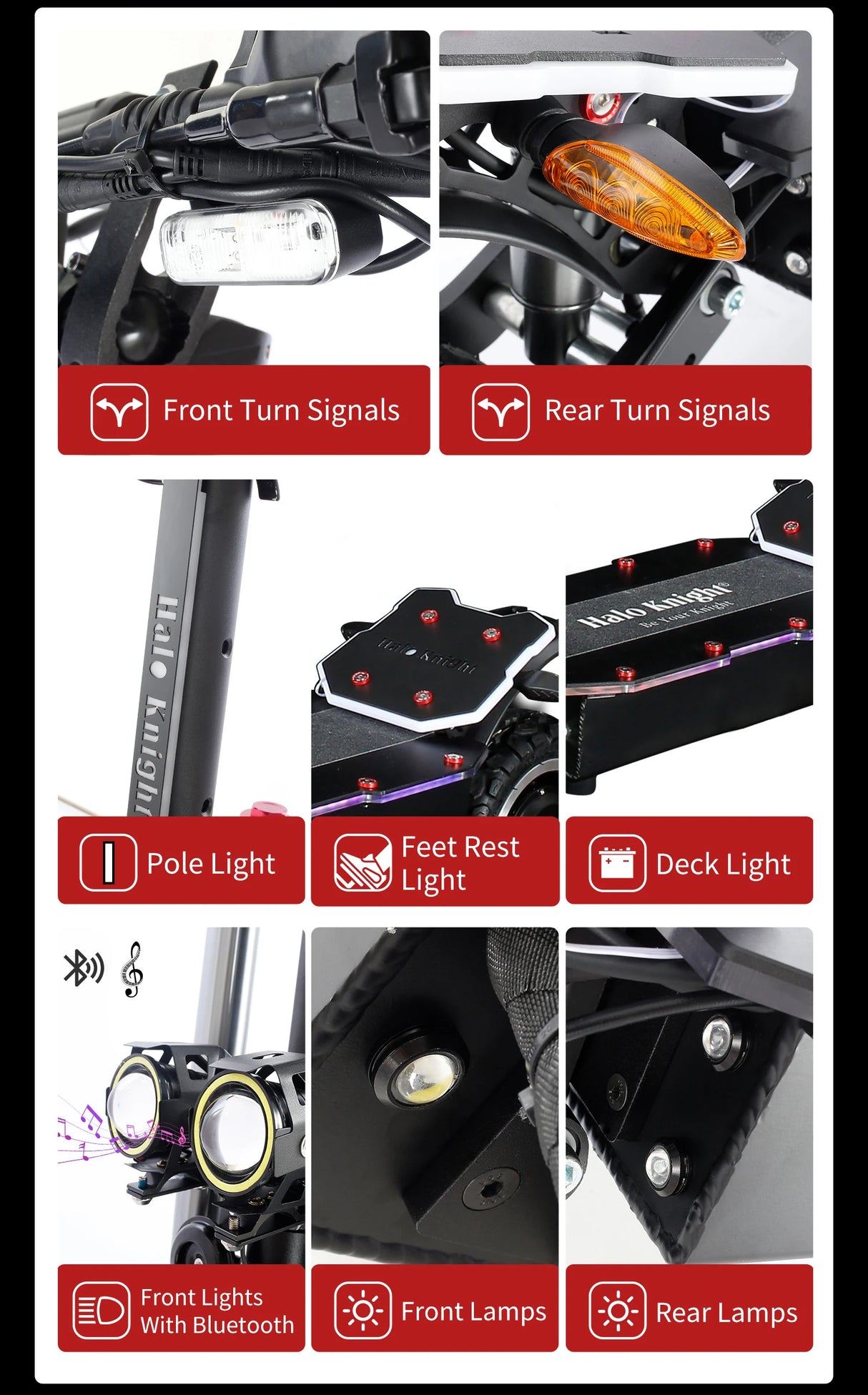

Light: Front Lights, Front and Rear Driving Lights, Rear Brake Lights, Front and Rear Turn Signals, RGB Lights

Max Load: Approximately 200KG (about 440 lbs)

Max Range: About 40-80km (The actual mileage will vary due to rider weight, speed and road conditions, 80km is tested with single drive at 25km/h, the range of dual drive will be halved)

Model Number: T107Pro

Motor Power: 2 * 60V 3000W Motor (Peak Power) ​

Net Weight: 47KG

Origin: Mainland China

Recommended Rider Height: 5.0(ft)- 6.8(ft)

Suspension: Front and Rear Suspensions, Steering Damper

Tire Size: 11 inch

Top Speed: About 80-95km/h (The actual speed will vary due to rider weight and road conditions)

Unfold Size: 122*62*119-137cm

Warranty: 6 Months

Waterproof Rating: IPX4

Wheel Size: 11Inch CST Inflatable Off Road Tires

Specification

Brand: Halo Knight

Name: Electric Scooter

Model: Halo Knight T107Pro

Color: Black

Material: Aluminum Alloy

Tire Size: 11Inch CST Inflatable Off Road Tires

Motor Power: 2 * 60V 3000W Motor (Peak Power)

Battery Capacity: 60V 38.4Ah Panasonic Lithium Battery

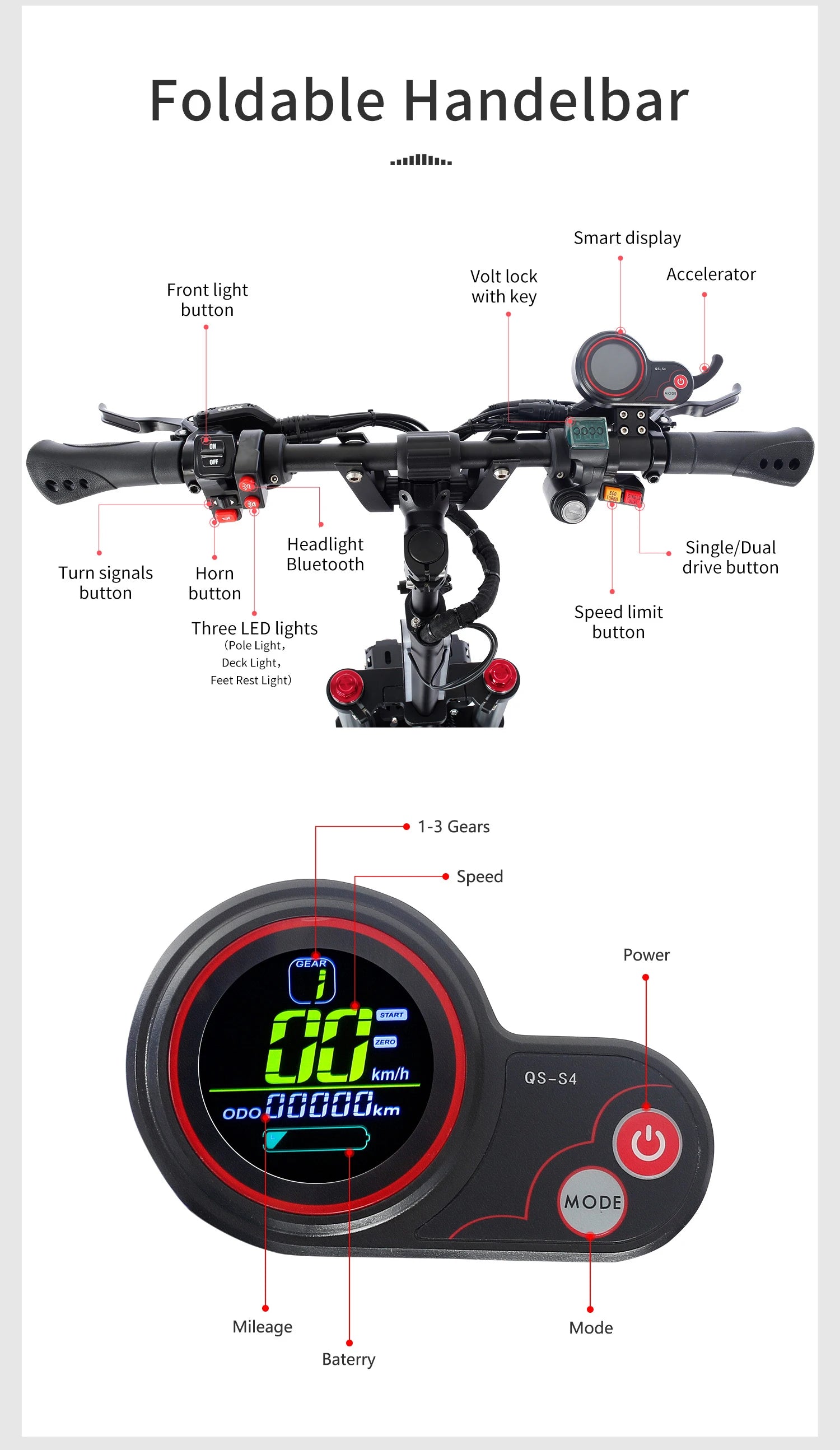

Display: QS Display

Recommended Speed: 25km/h

Top Speed: About 80-95km/h (The actual speed will vary due to rider weight and road conditions)

Max Range: About 40-80km (The actual mileage will vary due to rider weight, speed and road conditions, 80km is tested with single drive at 25km/h, the range of dual drive will be halved)

Charging Time: About 6-11 Hours

Light: Front and Rear Lights, Brake Lights, Front and Rear Turn Signals, RGBs

Brake System: Front and Rear Hydraulic Brakes & Electric Brake

Shock Absorber: Front and Rear Suspensions, Steering Damper

Maximum Load: Approximately 200kg (about 440lbs)

Climbing Angle: Approximately 50°

Waterproof Rating: IPX4

Halo Knight Advise Rider Height: 5.0~6.8 (ft) or 155-210 (cm)

Net Weight: About 47kg

Gross Weight: About 56kg

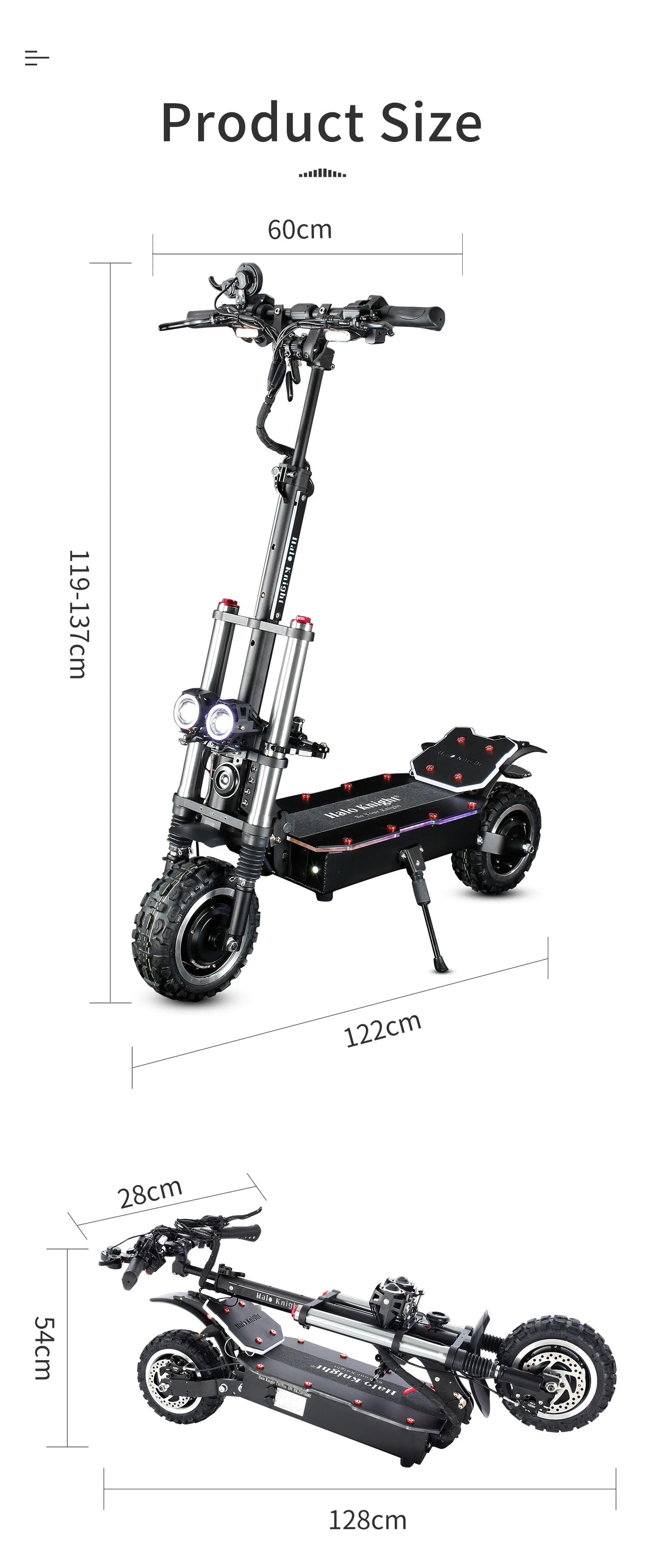

Product Unfold Size(L x W x H): 122 x 62 x 119-137cm

Product Folding Size(L x W x H): 128 x 28 x 54cm

Package Size(L x W x H): 135 x 33.5 x 54cm

Certification: CE RoHS FCC

Warranty: 6 Months

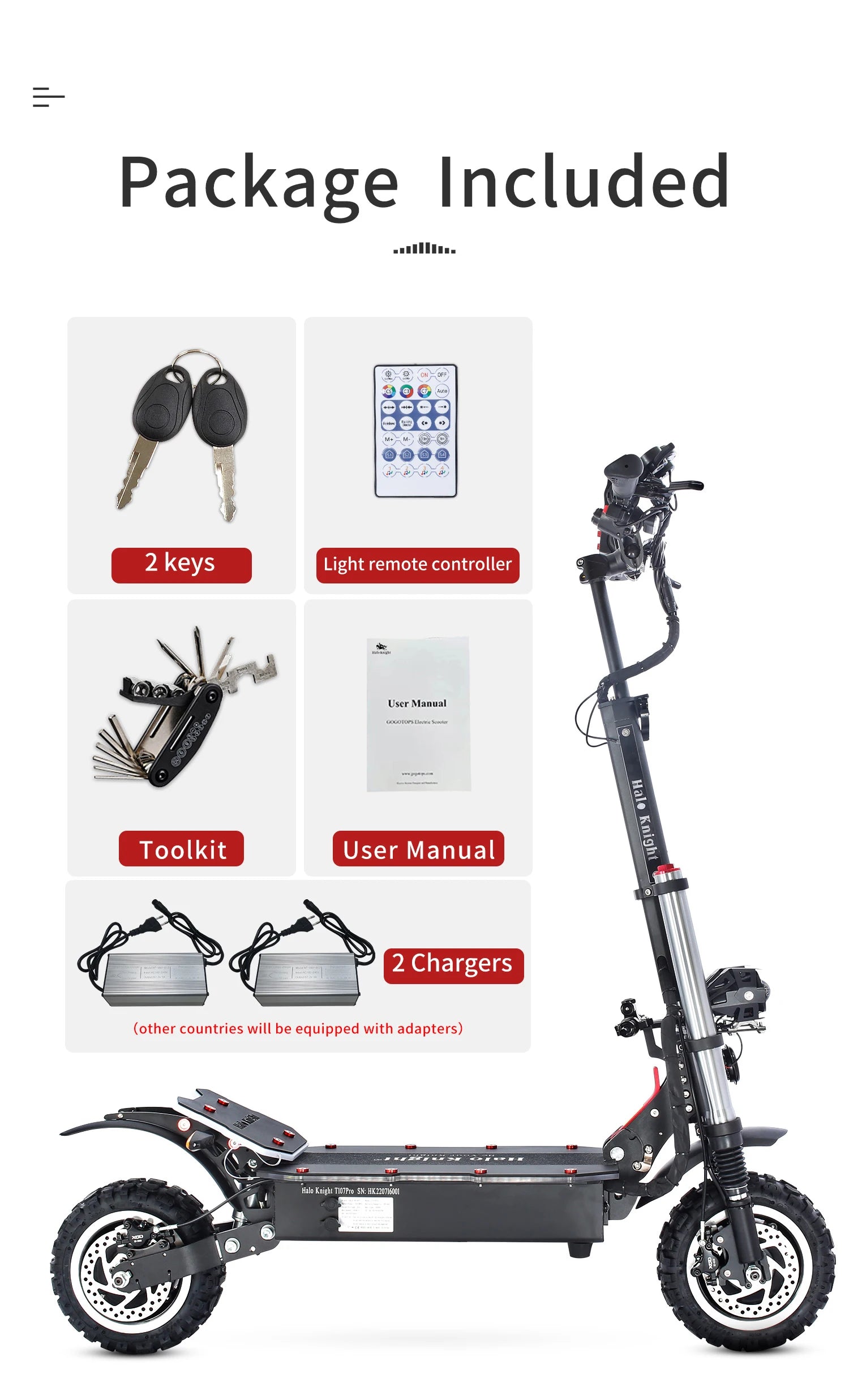

The Package Includes:

1 x Electric Scooter (No Seat)

2 x Chargers

2 x Voltage Lock Keys

2 x Speed Limit Remote Controls (gift)

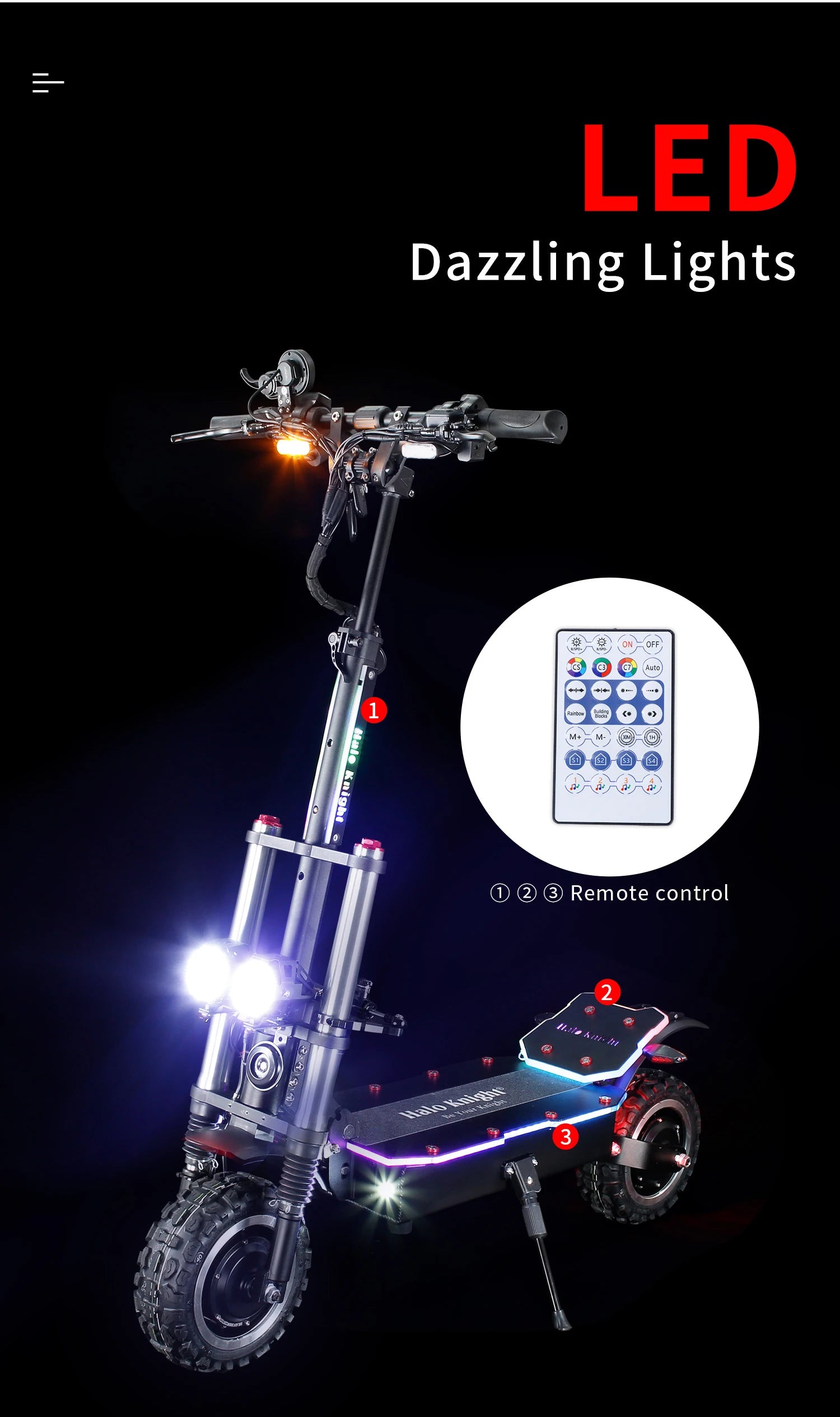

1 x RGB Lights Remote Control

1 x User Manual

Features:

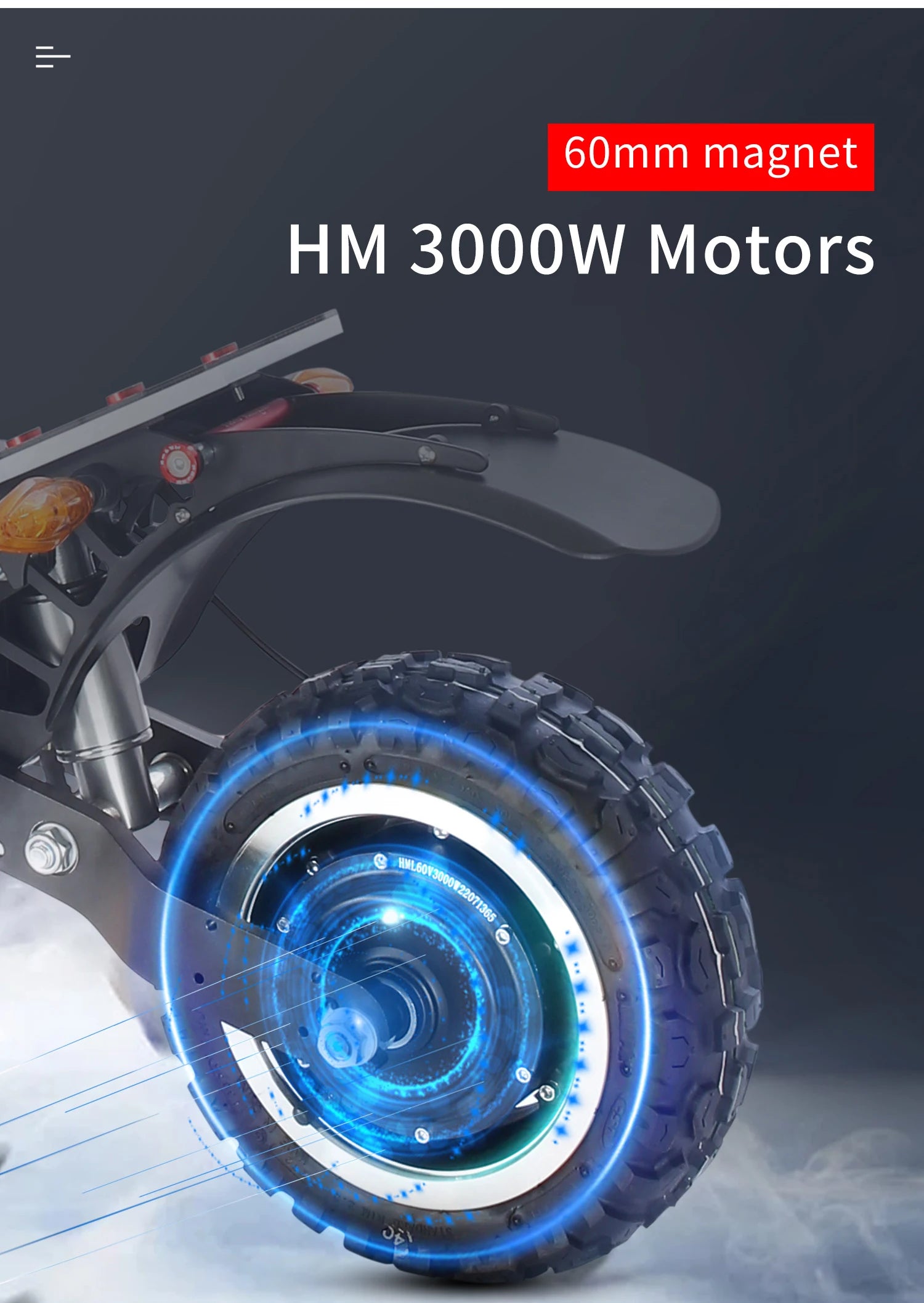

● 3000W x 2 wheel motors provides the max 95km/h speed and max 50 degree gradient.

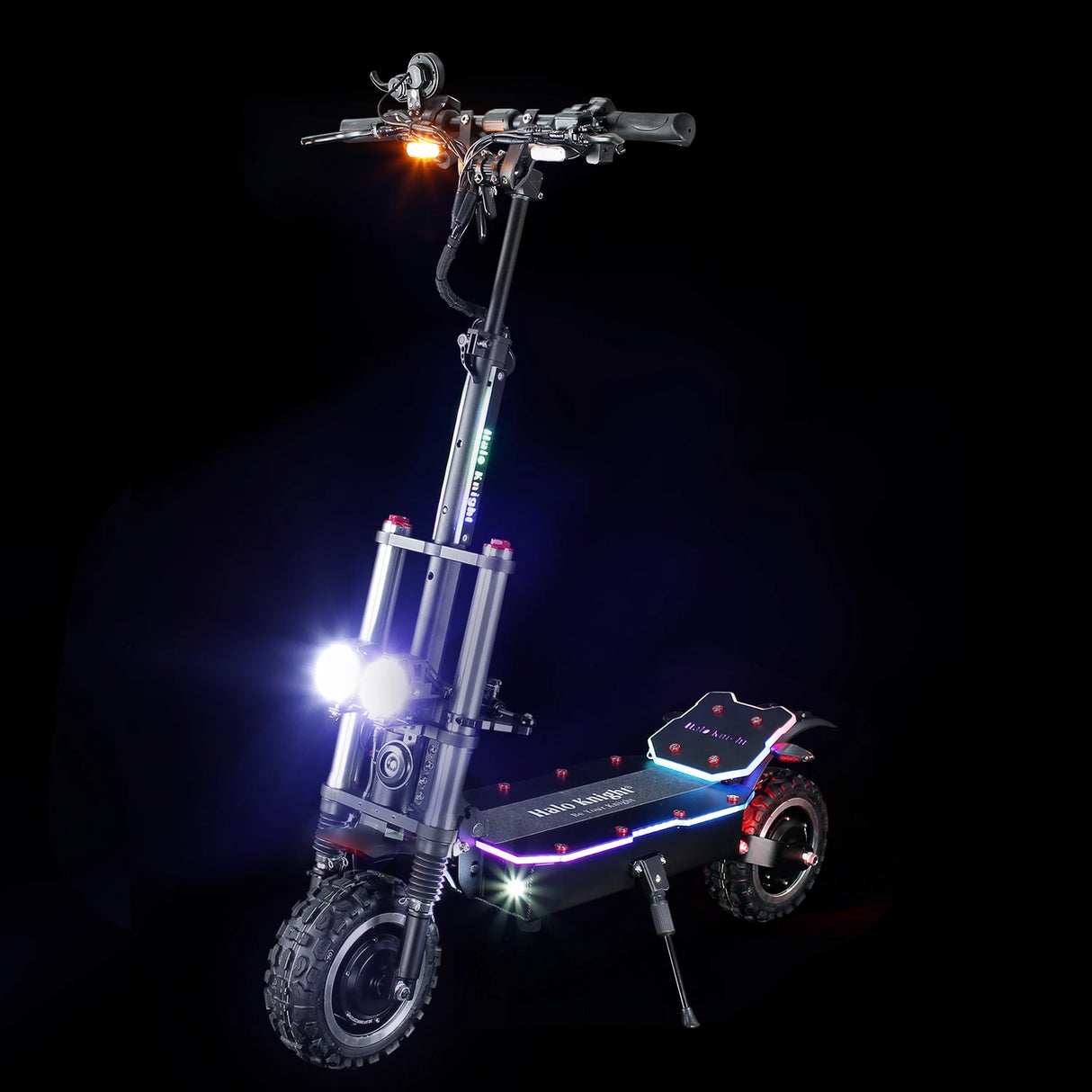

● Front and rear turn signals and controlable RGB lights of whole body design, Stylish and cool.

● 60V 38.4Ah quality Li-ion battery ( included in product ) for max 80km mileage, with 100A BMS.

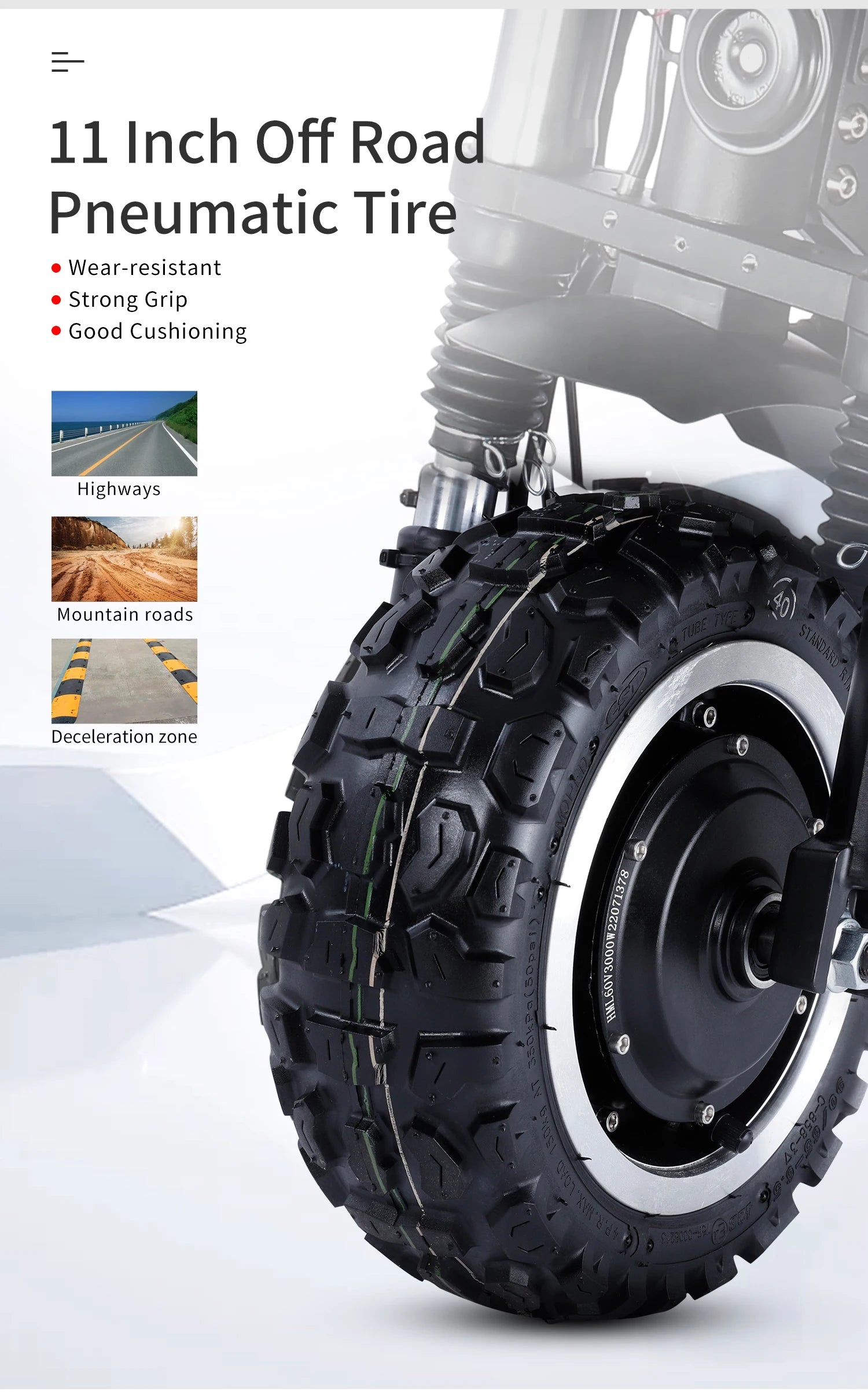

● 11 inch CST rubber pneumatic tire for different grounds to take, easy to replace the inner tubes.

● Bluetooth to connect phone to play musics when riding.

● 25KM/H speed limiter remote control, limit 25km/h anytime, safer ride in city.

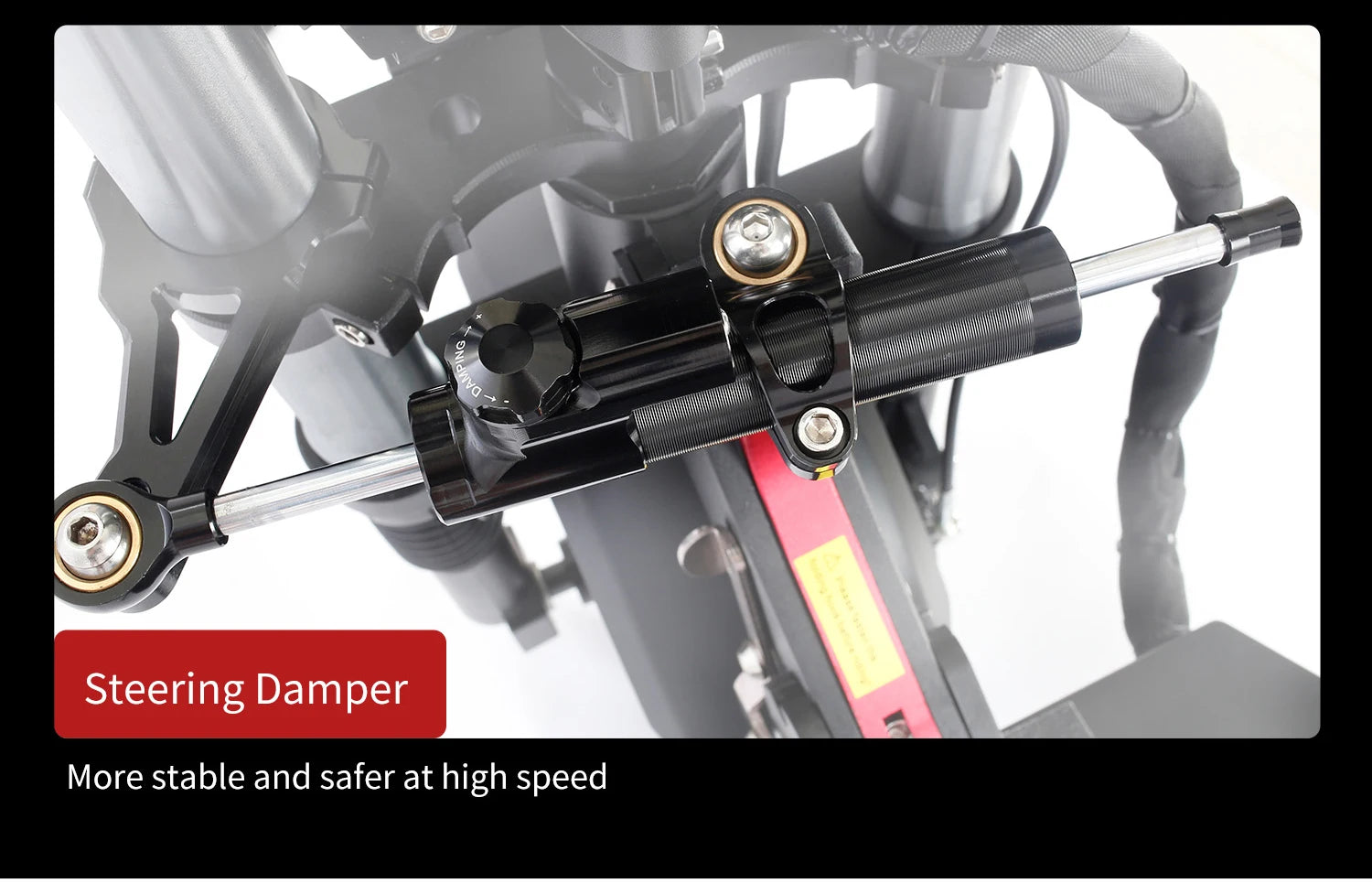

● Steering damper make riding more stable at high speed.

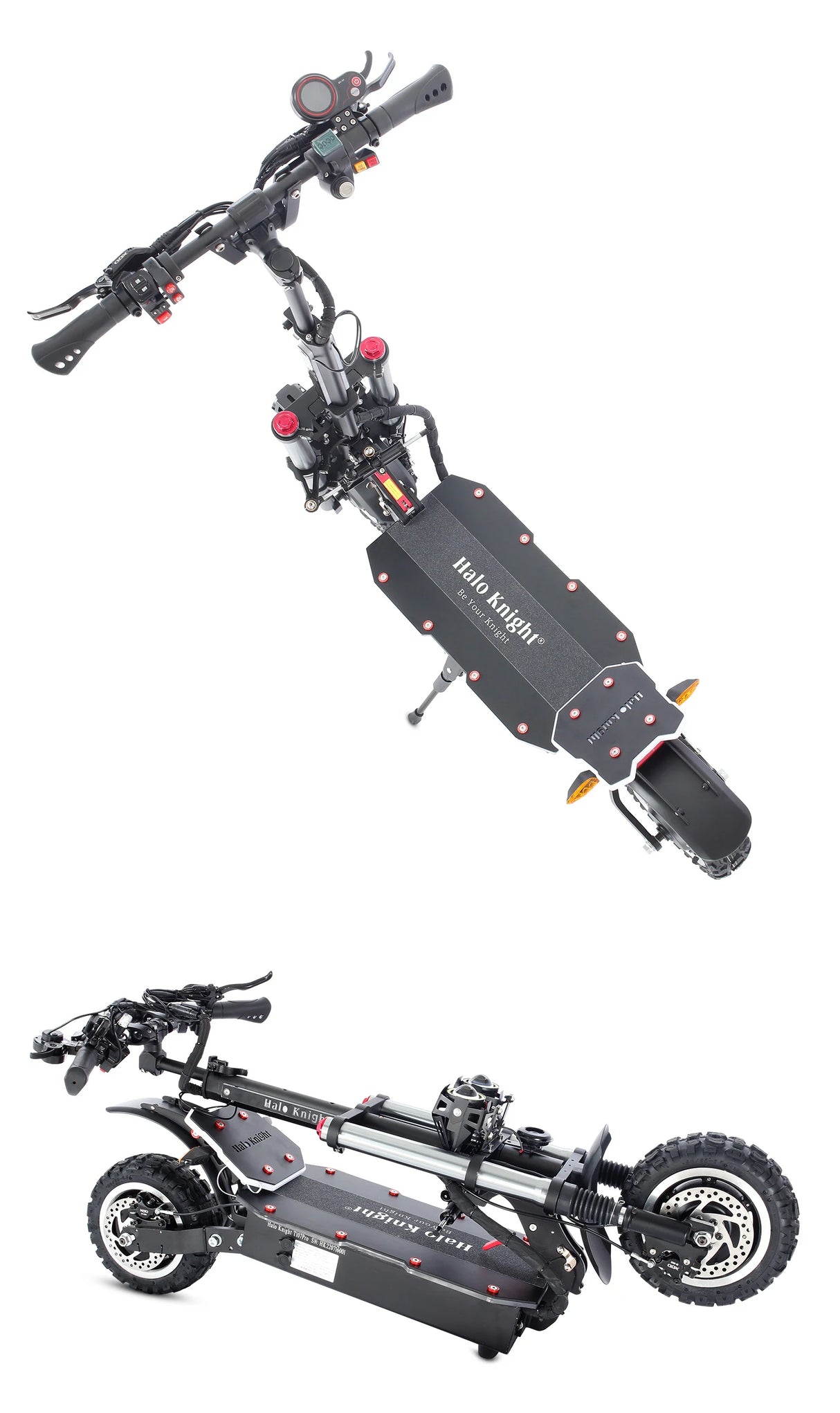

● Quick folding design for convenient carrying in your car trunk.
● Aluminum alloy shell for max 200kg payload.
● Dual charging system for quick charging time.

● Suitable for adults and teenagers for fun.

Note:
1.Please allow 1-3cm error due to manual measurement. Please make sure you do not mind before you make the order.
2.We have been constantly improving the effects of photography, but due to different camera and monitor parameters, lighting and other factors, it is still difficult to avoid the color difference between the real object and the photo, so please refer to the actual color.
3.The shape or color of some accessories may be improved during sale, but the functions are guaranteed to be the same. If you can't accept this, please don't buy, please understand.

Quick Tips for Your New E-scooter:

1. Confirmation of Receipt: Please confirm receipt in our store after you have received your e-scooter.

2. User Manual Review: Please carefully review the provided user manual(English version). For user manual in other languages, kindly contact our customer service to request user manual in your preferred language.

3. Installation Tutorial: Please attentively view our installation tutorial video: https://www.youtube.com/watch?v=UAlU-UiX5NU  and securely tighten all screws as instructed to guarantee riding safety.

4. Initial Charging: Please fully charge the e-scooter upon receipt for the initial charge. Avoid riding with low battery levels to prevent damage to the battery.

5. Safe Charging: Charge the e-scooter correctly. Turn off the e-scooter, plug the charger to the e-scooter first, and then to the power socket. Use only the original charger provided. Once charging is complete, disconnect the power socket first, and then disconnect the e-scooter. Avoid contact with metal at the charging ports to prevent short circuits (not covered under warranty).

6. Riding Preparation: Before riding halo knight, inspect and securely tighten all screws, ensuring the safety lock is engaged. Initially, use the low gear to acclimate to riding the e-scooter, and only shift to higher gears once you're familiar with all functions. Avoid high speeds when not accustomed to the scooter's functions to prevent loss of control and potential injury.

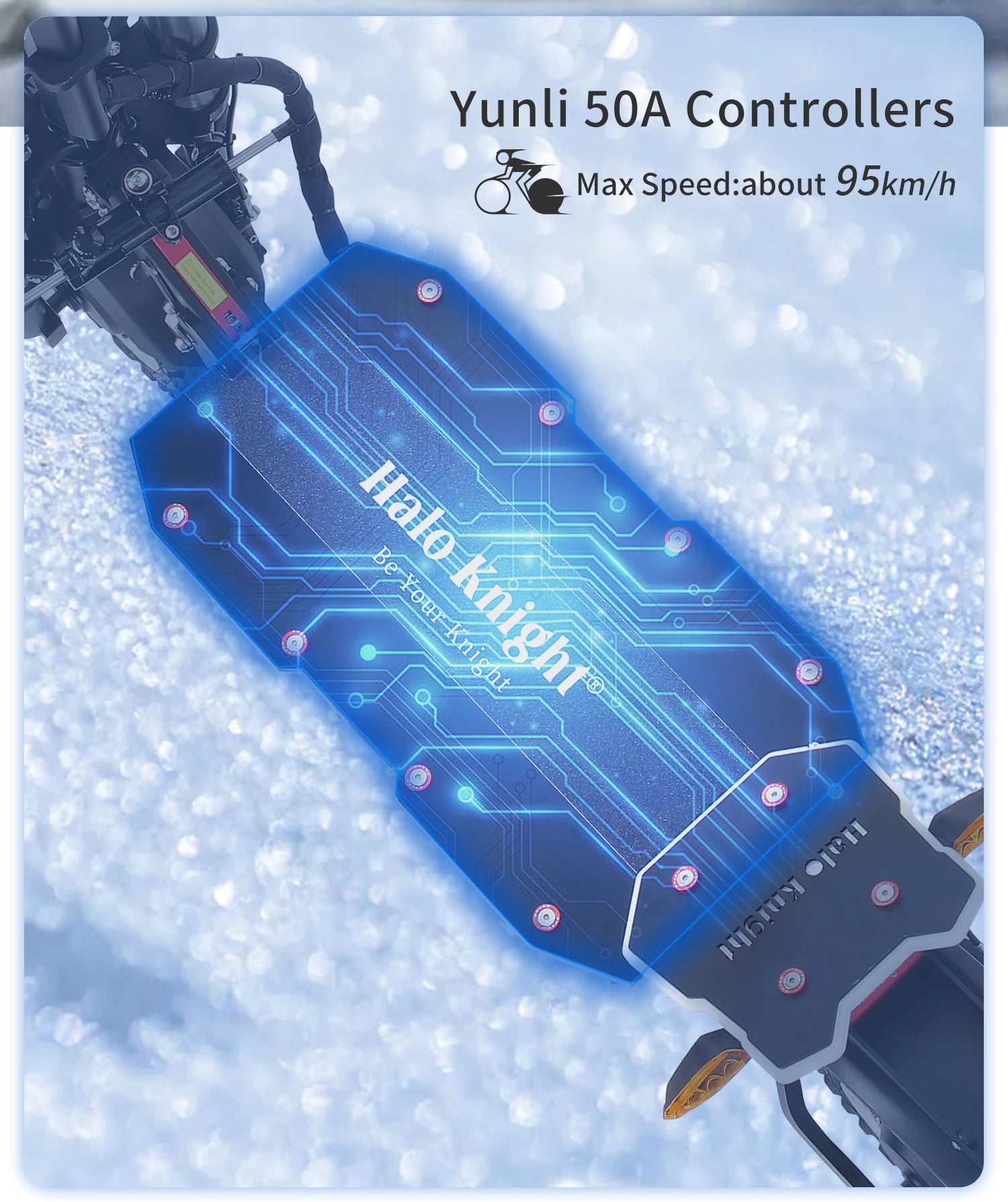

7. Controller Protection: Frequently utilize dual drive, particularly during uphill climbs or at high speeds, to safeguard the controllers. Prolonged use of the single drive may lead to overheating and potential burnout of the rear controller.

8. Maintain Meter P Value Unaltered: Avoid unauthorized modifications to the meter's P value, as it may result in speed discrepancies or malfunctions. Certain parameters, once altered, cannot be restored, and such situations are not covered by the warranty. We strongly advise against making arbitrary changes to ensure optimal performance and warranty coverage.

9. Battery Maintenance: To maintain your battery, make sure to charge it before it fully depletes to prevent damage from low-power riding. If the e-scooter is inactive for an extended period, charge it once every 1-2 months and store the battery within the 30%-80% charge range.

Enjoy Your Safe And Fun Ride!

Questions & Answers

Q: Is there any risk of paying customs to ship to European Union countries?

A: No, you don't need to pay extra fees for it, the price on the page is the final price.

Q: Where is the scooter shipped from? And how many days can I get the scooter after I place the order?

A: Our e-scooters are shipped from warehouses in Europe and will be shipped out in 1-2 working days after you place the order. It usually takes around 3-7 working days for shipment.

Q: Does the T107Pro have a speed limit according to the EU's 25km/h regulation for scooters?

A: Yes, the T107Pro comes with a 25km/h speed limiter remote control as a gift for EU clients (not covered by warranty). Our Halo Knight scooters are designed for EU clients, and the 25km/h speed limiter remote control is included. The scooter arrives with full speed, and you can limit the speed to 25km/h at any gear using the remote control in daily use.

Instructions for use: 1. Double-click the lightning button briefly to limit the speed. 2. Click the unlock, lock, or lightning button once to restore the speed.

The speed limit will persist after the scooter is turned off. Only through the remote control or by disconnecting the small black box of the speed limiter in the battery compartment can the speed limit be removed.

Q: What is the material of the frame?

A: The frame material is aluminum alloy, very solid.

Q: Can this e-scooter be folded?

A: Yes, this e-scooter can be folded.

Q: What is the tire size for the e-scooter?

A: The tire is CST 11 Inch pneumatic off road tire with inner tube, solid and easy to replace.

Q: What is the maximum rider weight and height?

A: The recommended rider weight is around 200kg(about 440 lbs), and rider height is 5.0(ft)- 6.8(ft).

Q: What kind of assembly is required?

A: Your e-scooter will arrive partially assembled (about 95%) and packaged in a standard scooter box. The parts that need to be mounted include the handlebars, turn signals and some screws. You can check the manual or our video instructions on YouTube for a step-by-step guide: https://www.youtube.com/watch?v=UAlU-UiX5NU

Q: Is the battery removable?

A: Yes, it is removable. However,refrain from opening the battery compartment to reconnect or change cables, or disassemble the battery without permission. This may lead to circuit loosening, detachment, or even short circuits, and such issues are not covered by the warranty. Only remove the battery when replacement is necessary.

Q: What brands of lithium batteries are installed?

A:  Batteries usually use Panasonic, LG, Lishen brand. Batteries may be different in each batch. Please contact customer service to inquire about the brand of batteries in this batch. No matter what brand batteries are used, our batteries are made in large factories, safe, reliable and durable, please rest assured to use.

Q: Can I purchase an extra battery?

A: Yes, you can buy an extra battery from our official website or contact customer support.

Q: How many chargers does the e-scooter T107Pro come with?

A: The e-scooter T107Pro comes with 2 pieces chargers.

Q: Does the scooter come with a seat?

A: No, the scooter is sold without a seat. You can buy an separate seat from our official website or contact customer support.

Q: Does the scooter come with a remote alarm?

A: No, the scooter does not include a remote alarm. Instead, it is equipped with a voltage key. The voltage key is recommended for its practicality and durability. It allows you to monitor the real condition of the battery.

Q: When should I charge the scooter?

A: Charge your scooter before the voltage(showed on volt meter) drop to 52V, avoid riding with low battery levels to prevent damage to the battery.

Q: What is the maximum charging current of the charger?

A: It is not recommended to exceed a total current of 6A. You can use two original 3A chargers simultaneously to expedite the charging process.

Q: How to charge with the correct charging method?

A: Turn off the e-scooter, plug the charger into charging ports(e-scooter) Firstly! Then Plug the charger into power socket Secondly! Once charging is complete, disconnect the power socket first, and then disconnect the e-scooter.

Q: How long should I charge the e-scooter?

A: The charging time is around 6-11 hours. The charger shows a red light during charging and switches to green when fully charged. Disconnect the charger once the green light is displayed on the charger.

Q: Do the batteries have overheating protection ?

A: Yes, the battery has overheating protection.

Q: Does this scooter come with a mobile phone app?

A: No, it doesn't come with phone app.

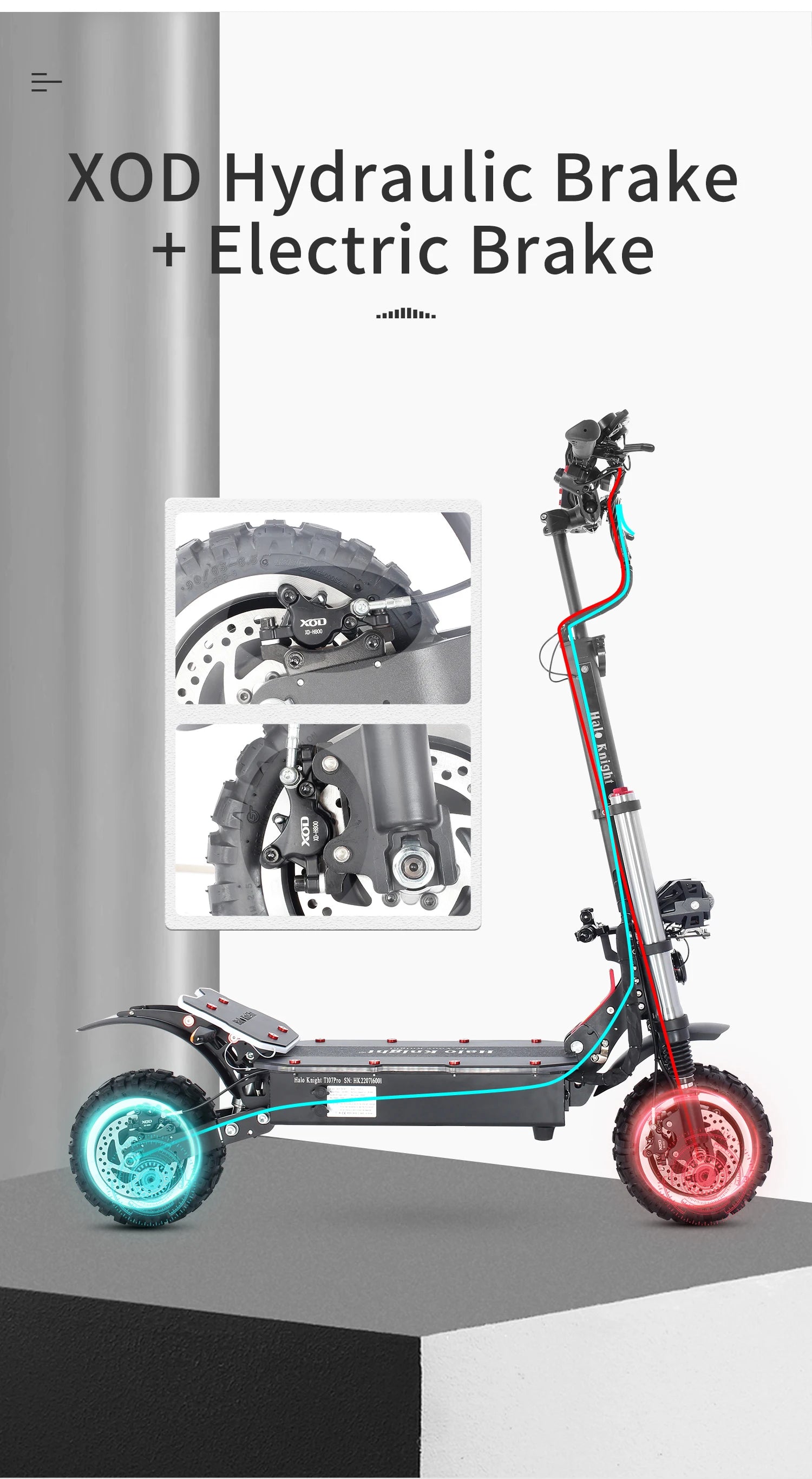

Q: What braking system does it use?

A: The e-scooter T107Pro is equipped XOD hydraulic brakes at front and rear.

Q: Can I ride this e-scooter on a rainy day?

A: Avoid riding in rainy conditions, as large off-road scooters are not fully waterproof. Electronic components and switches can easily be damaged if water enters. Water entering the battery compartment can harm the circuit, controller, and battery, potentially leading to a short circuit. Warranty is void in case of water ingress. Take proper care of your scooter and refrain from riding it in rainy or snowy weather.

Q: What if there are any quality issues with the e-scooter?

A: We have a professional after-sales service team and a technical support team to provide you with lifelong technical support. All accessories are available in our official website and there will be accessory replacement videos to teach you how to replace them.

Q: Where can I buy the spare parts for the Halo Knight scooters?

A: If you need spare parts, please feel free to contact our customer service or visit our official website. Most parts of our Halo Knight models are available.
