SPECIFICATIONS

Brand Name: Eatssode

Capacity: 6L

Hign-concerned Chemical: None

Origin: Mainland China

Power (W): 2100-5000W

Power Source: AC

Storage / Tankless: Instant / Tankless

Voltage: 110V

Package Included

1*Water Heater

1*English Manual

All Accessories for Assembly

Specifications

Model: XY-FC

Color: Black;Red

Style: Modern

Shape: Rectangle

Material: Brass, ABS, 304 Stainless Steel, 316L Stainless Steel

Surface Treatment: Pickling

Plug: US-Standard

Power Source: Corded Electric

Water Inlet Mode: Bottom Water Inlet

Mounting Type: Wall-Mounted, Floor-Mounted, Under Sink

Temperature Regulation Range: 20-50°C/68-122°F

Power Cord Length: 1.05m/3.44ft

Assembly Required: Yes

Number of Items: 1

Power: 3000W

Voltage: AC 110V

Frequency: 50-60Hz

Waterproof Level: IPX4

Water Pressure: 0.04-1.2MPa

Wire Request: Wire Cross Section ≥2.5mm²/0.0038in²

Suggest Minimum Reserved Installation Space: 30*30*25cm/11.81*11.81*9.84in

Gross Weight: 1.1kg/2.42lbs

Net Weight: 0.95kg/2.1lbs

Product Size: 11.6*7*19.5cm/4.57*2.8*7.68in

Tank Length: 16cm/6.3in

Package Size: 23.5*9.5*18.5cm/9.25*3.74*7.28in

Description

Do you live in a place with limited space and worry about insufficient hot water supply? We have a good solution to such problems! This mini water heater can quickly heat water in just a few seconds and has good safety, allowing you to enjoy a continuous supply of hot water in a limited space. It can make your daily washing and cleaning activities warmer, making your winter no longer cold.

Features

High Efficient: With the joint efforts of a 3000W power and a fast thermal conductivity heating pipe, it can provide you with uninterrupted hot water within 3-5 seconds of the faucet being turned on.

Clear Temperature: When turned on, you can long press the power button for 6 seconds to set the unit between Fahrenheit or Celsius degrees, allowing people accustomed to different units to quickly determine the current temperature.

Safe to Use: When the water flow is turned off, it will directly enter the standby mode, making you more at ease. Four protection functions (grounding setting, anti-dry burning, leakage protection, and overheating protection), triangular socket, and IPX4 protection level can effectively ensure safety and let you use it with confidence. It can heat water to 68-122 ° F, so it won't cause burns to you.

Mini Size: Its size is only 4.57*2.8*7.68 inches, which can be easily installed under the sink and other narrow spaces, providing you with long-term continuous hot water.

Selected Material: The 304 stainless steel lining is pressure resistant and explosion-proof. The 316L stainless steel heating pipe has good thermal conductivity, which can accelerate the heating process. The shell is made of ABS, which is hard and firm. The brass interface is corrosion-resistant and wear-resistant, ensuring good long-term performance.

Long Power Cord: The 3.44-foot power cord reduces usage restrictions and further protects your safety.

Touch Button: The electronically controlled touch button has excellent sealing performance and can work stably in humid environments for a long time.

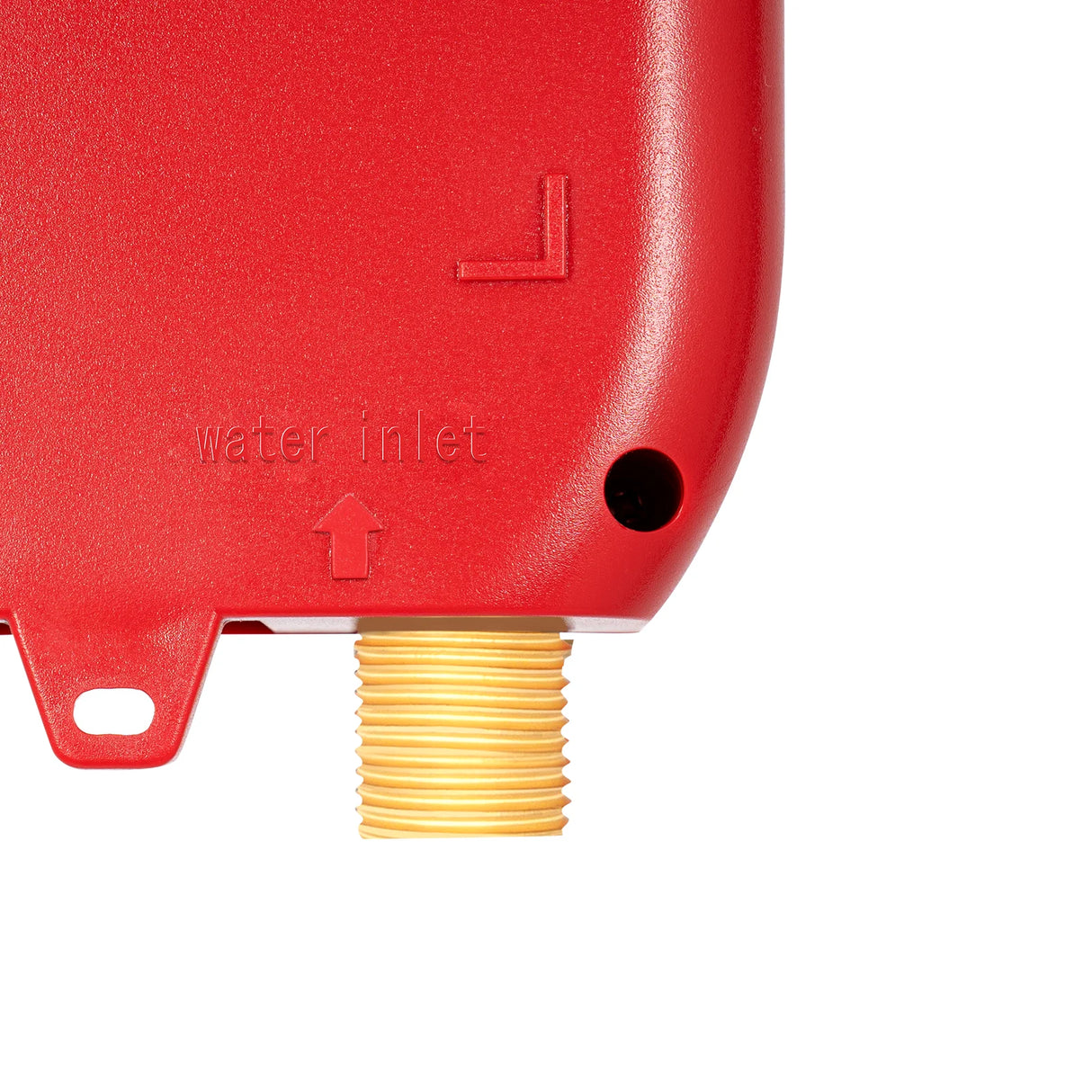

Universal Interface: The international G1/2-inch interface is adopted for the water inlet and outlet, and the 0.78-inch outer diameter can be well adapted to a variety of water pipes, faucets, showers, etc.

Application

It is very suitable for installation in small residential areas, garages, offices, sinks, kitchens, apartments, bathrooms, RVs, terrace sinks, and other areas that require hot water but have limited space. It is suitable for different water pressures in different regions and can also be used in high-rise households.

How to Install

1. Drill holes in the wall. Insert the plastic expansion tubes into the holes.

2. Tighten the water heater with screws. The water heater must be installed vertically.

3. Connect the cold water inlet pipe to the inlet nipple and the water outlet pipe to the outlet nipple.

4. Before connecting the power, fill the tank and system with water and check for leaks.

5. Open the hot water faucet until constant water flows from them. Otherwise, damage to the element may occur.

Notes

1. Please carefully read the manual and strictly follow the precautions to have a better experience.

2. Please note that this product only supports vertical installation, as horizontal installation may cause dry burning. And ensure to add water before connecting to the power supply during the first use.

3. This product is recommended to be connected with wires with a cross-sectional area of ≥ 2.5 square millimeters, and connected to trip switches of over 32a for use.

4. If the water flow decreases, please check if the filter element is blocked.
